24hp Vertical Shaft Engine - Electric Start

In stock
SKU: CPV680-1
Regular price $1,599.00 inc. GST

Product details

  • Type Vertical Shaft Engines
  • SKU CPV680-1

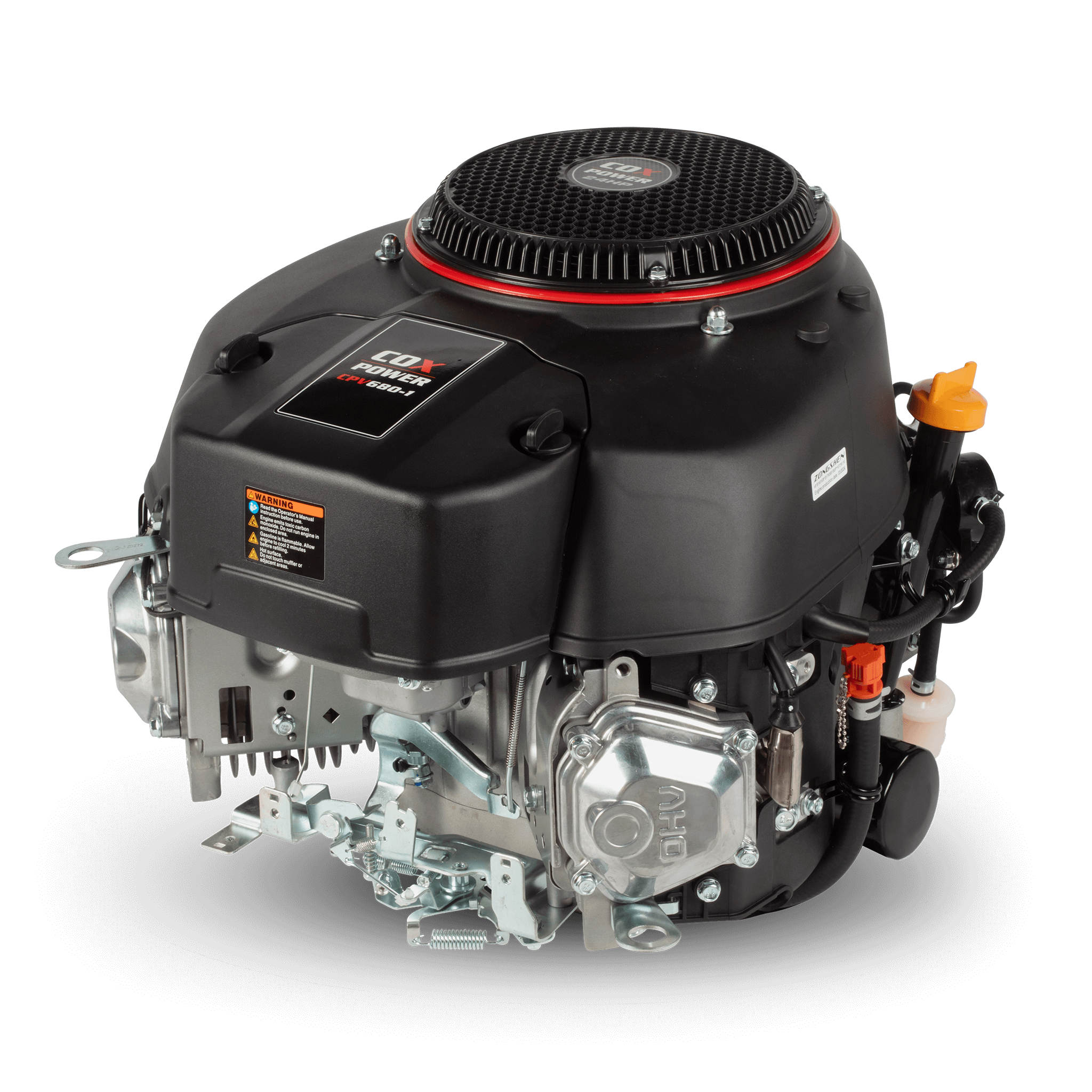

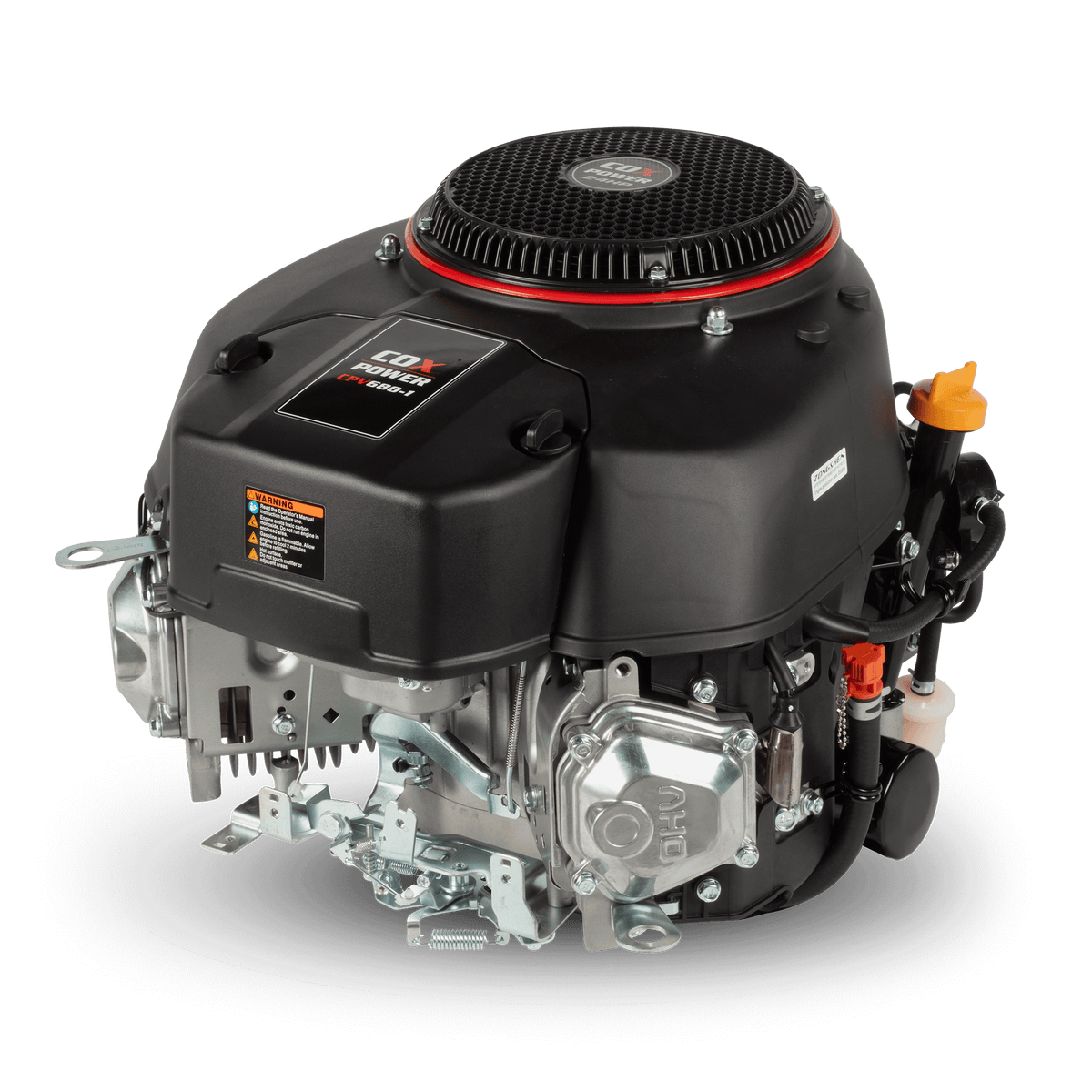

Introducing the CPV680-1, a powerhouse with a commanding 22.5hp electric start, meticulously crafted with a complete commercial-grade construction and a rugged cast iron cylinder liner. Designed to elevate the performance of your commercial ride-on mowers and zero-turn mowers, this engine, with its 1” crankshaft size, emerges as the ideal replacement for renowned models, including the Vanguard 23HP V-Twin Vertical Shaft Petrol Engine, Vanguard 26HP V-Twin Vertical Shaft Petrol Engine, Briggs & Stratton 27HP V-Twin Vertical Shaft engine, and Kohler CV740 25HP Lawnmower Engine.

The CPV680-1 boasts impressive specifications, featuring a cylinder bore of 78 x 71 mm, a displacement of 679cc, and a rated power of 14.5/24 kW/HP. With a maximum output speed of 3900 r/min and a torque of 42 N.m, this engine ensures reliable and efficient performance. The recoil/E-start system adds convenience, and its 1.5L oil capacity, suitable for SAE 10W-30 oil, caters to the engine's longevity. Operating with a specific fuel consumption rate of 374 max g/kW - h at rated power, it strikes a balance between power and efficiency.

In terms of packaging, the CPV680-1 is designed with dimensions of 550 x 550 x 530 mm and weighs 43.5 kg. The engine is certified with CE, EPA, EC(V), and CARB, ensuring compliance with industry standards. With its versatility, reliability, and adherence to high-quality standards, the CPV680-1 emerges as a dynamic choice for general-purpose applications, combining power and precision to meet your machinery needs.
