Log Splitters

Specifications

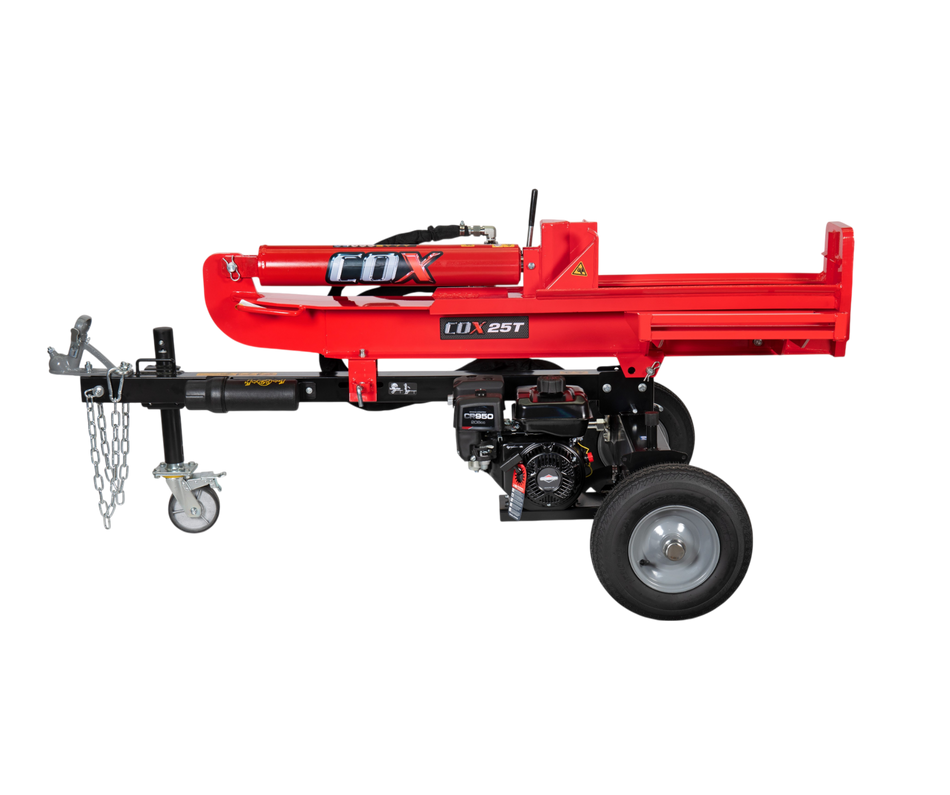

Engine COX 196cc 6.5HP OHV
Splitting Force 25 Ton
Log Capacity 24"/600mm
Pump Size 14GPM
Hydraulic Cylinder Bore 4" / 100mm
Hydraulic Cylinder Stroke 602mm
Hydraulic Rod Diameter 1-3/4"/45mm
Cylinder Circle Time 9.5 Seconds
Hydraulic Capacity 6.4 Gallon/24.2L
Control Valve Auto Return with Adjustable Detent
Replacement Filters Built-in, Sealed, Return Filter, Suction Screen
Hoses High Pressure w/ wire braid; Coil-wrapped
Beam Heavy Duty U-Shape formed construction
Wedge Size 200m
Wedge Style 2-way, Optional 4 Cross Wedge
Rear Wheels 4.80-8, DOT Approved 16" O.D. Road Tyres
Hitch Coupler 50mm Ball with Safety Chain
Safety Chains Standard
Hitch Handle Standard
Horizontal/Vertical Splitting Standard
Open Operating Zone Standard
Centrally Located Controls Standard
Wheel Fenders No
Log Cradle Standard
Net Weight 232KG
Work Table Optional (850mm)
Cross Wedge Optional

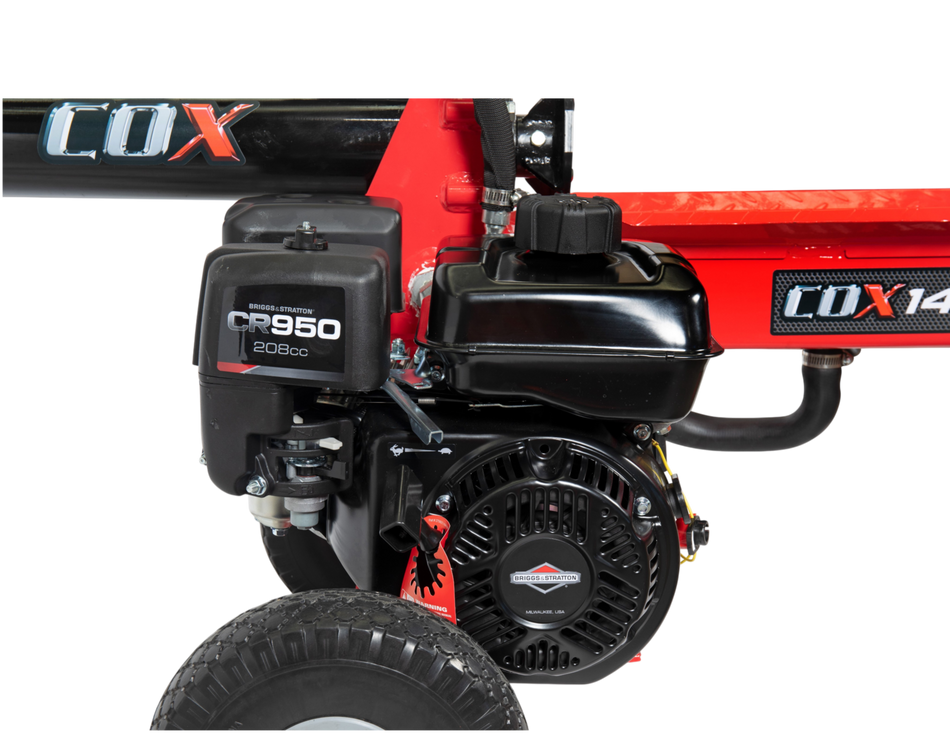

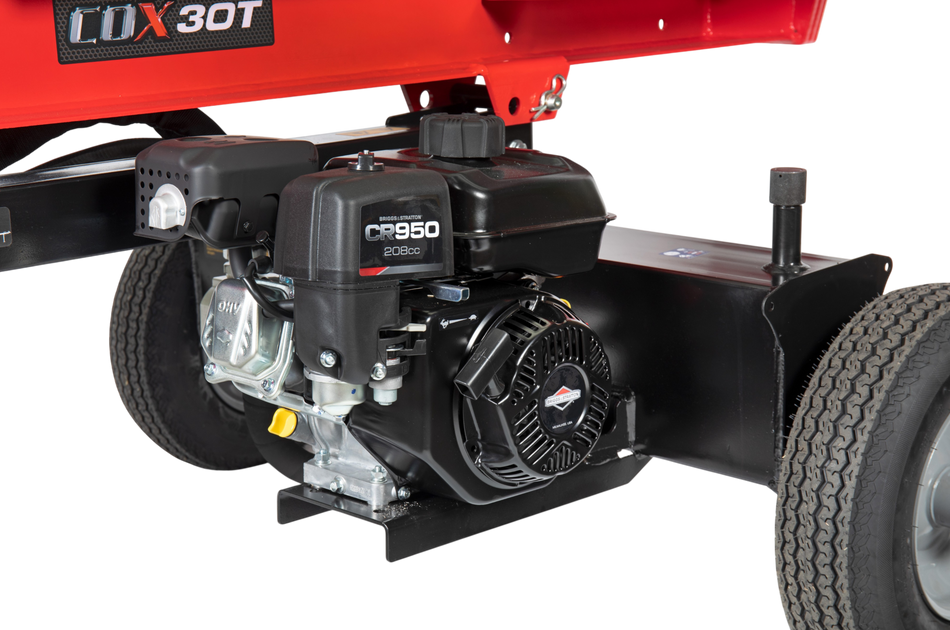

Engine B&S XR950 6.5HP 208cc
Splitting Force 28 Ton
Log Capacity 26"/655mm
Pump Size 14GPM
Hydraulic Cylinder Bore 4-1/2" / 115mm
Hydraulic Cylinder Stroke 602mm
Hydraulic Rod Diameter 1-3/4"/45mm
Cylinder Circle Time 12.9 Seconds
Hydraulic Capacity 6.85 Gallon/25.9L
Control Valve Auto Return with Adjustable Detent
Replacement Filters Built-in, Sealed, Return Filter, Suction Screen
Hoses High Pressure w/ wire braid; Coil-wrapped
Beam Heavy Duty U-Shape formed construction
Wedge Size 200m
Wedge Style 2-way, Optional 4 Cross Wedge
Rear Wheels 4.80-8, DOT Approved 16" O.D. Road Tyres
Hitch Coupler 50mm Ball with Safety Chain
Safety Chains Standard
Hitch Handle Standard
Horizontal/Vertical Splitting Standard
Open Operating Zone Standard
Centrally Located Controls Standard
Wheel Fenders No
Log Cradle Standard
Net Weight 242KG
Work Table Optional (850mm)
Cross Wedge Optional

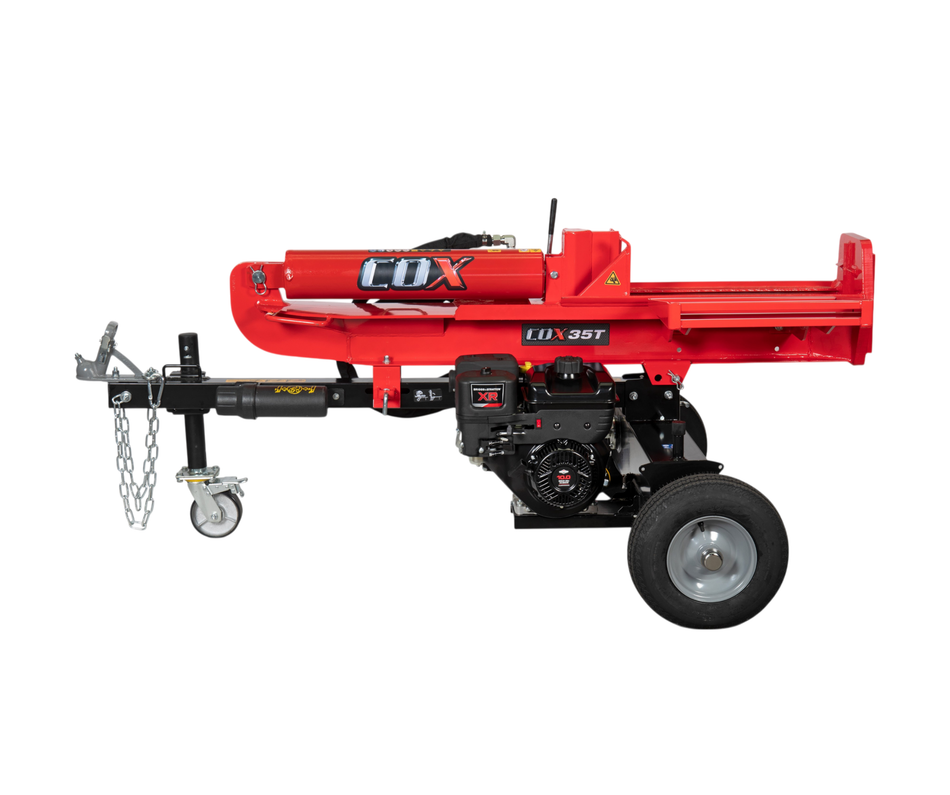

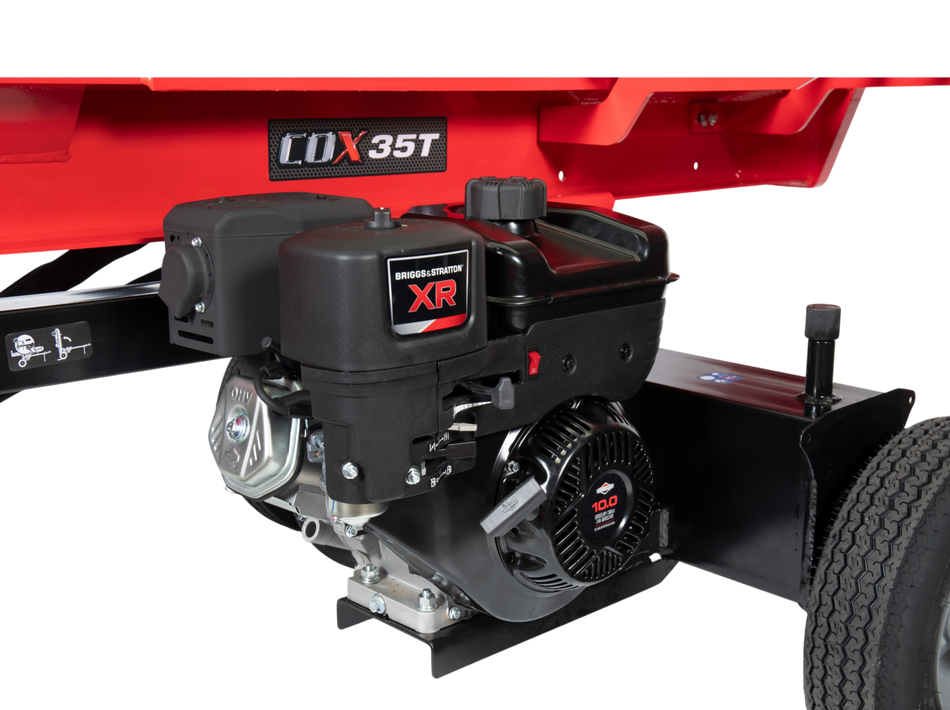

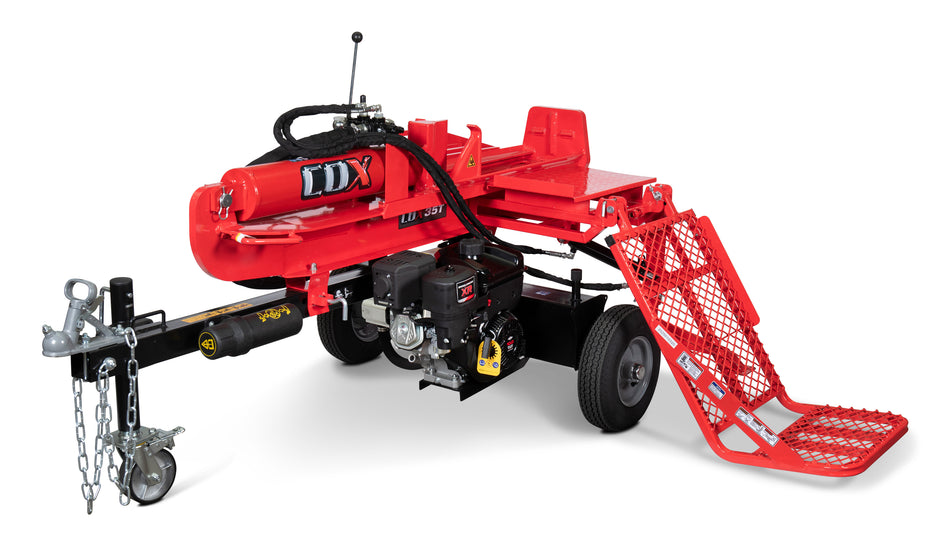

Engine B&S XR2100 13.5HP 420cc
Splitting Force 35 Ton
Log Capacity 28"/700mm
Pump Size 17GPM
Hydraulic Cylinder Bore 5" / 125mm
Hydraulic Cylinder Stroke 610mm
Hydraulic Rod Diameter 2" /50mm
Cylinder Circle Time 12.7 Seconds
Hydraulic Capacity 6.85 Gallon/25.9L
Control Valve Auto Return with Adjustable Detent
Replacement Filters Built-in, Sealed, Return Filter, Suction Screen
Hoses High Pressure w/ wire braid; Coil-wrapped
Beam Heavy Duty U-Shape formed construction
Wedge Size 200m
Wedge Style 2-way, Optional 4 Cross Wedge
Rear Wheels 4.80-8, DOT Approved 16" O.D. Road Tyres
Hitch Coupler 50mm Ball with Safety Chain
Safety Chains Standard
Hitch Handle Standard
Horizontal/Vertical Splitting Standard
Open Operating Zone Standard
Centrally Located Controls Standard
Wheel Fenders No
Log Cradle Standard
Net Weight 272KG
Work Table Optional (850mm)
Cross Wedge Optional
